Descriptions:

The SKW-101 system has been engineered to be dependable dual channel diversity UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range

Features:

• Dual Channel Diversity Wireless Receiver
• 200 Adjustable Frequencies with DPLL Synthesized Control
• UHF Band Frequency (800MHz)
• Two Independent XLR Balanced Outputs

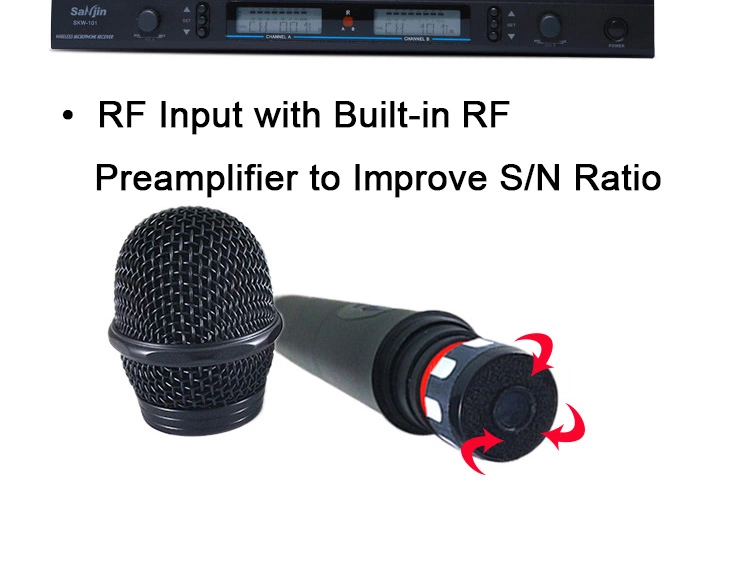

• RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
• Low Noise Mixer Circuitry for Reducing interference
• Removable Antennas

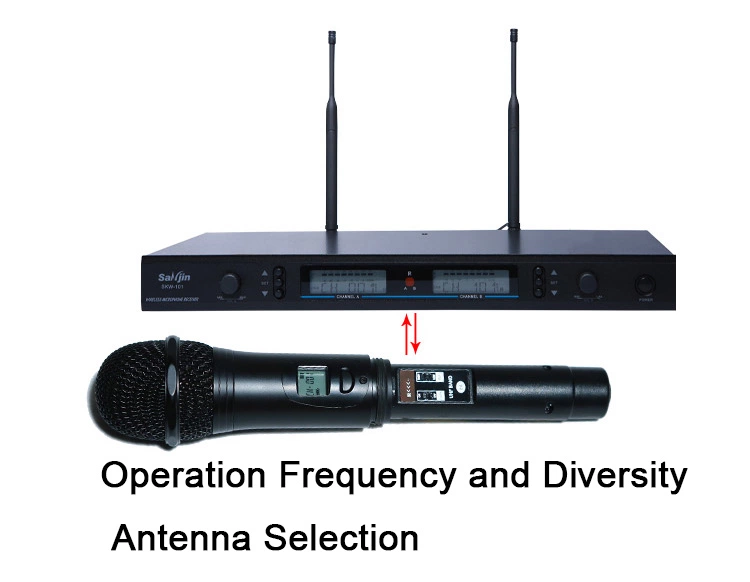

• 2 LCD screens provide informative status on each microphone's status including: Signal Strength, Audio Level, Operation Frequency and Diversity Antenna Selection
• Service Area: 330 ft (100 M)

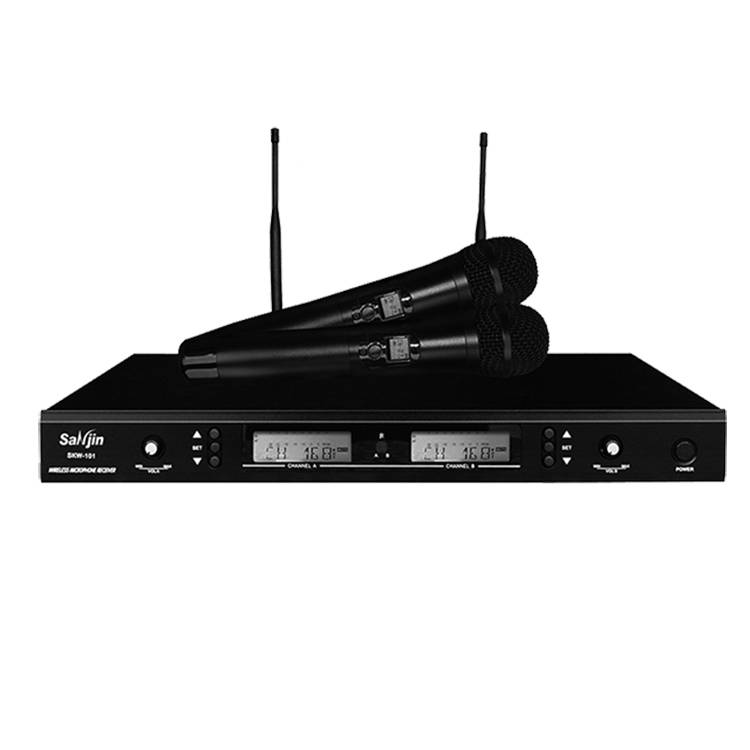

System:

Receiver

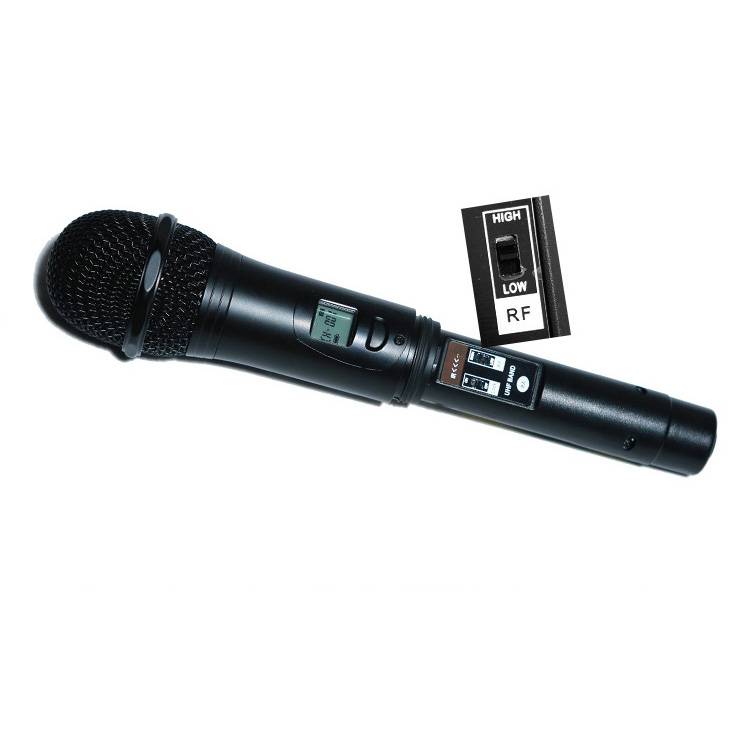

Transmitter
